GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable

Name: GJYFXCH 112 Cores FTTH Drop Fiber Optic Cable
Brand: SL RELIANCE
Price: 1 USD

Quality GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable wholesale

Brand Name : SL RELIANCE

Model Number : GJYFXCH

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 10KM

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 600KM/Day

Delivery Time : 2 weeks after payment

Packaging Details : 1KM per Drum, 2KM per Drum

Product Name : Drop Fiber Optic Cable

TYPE : Fig 8 FTTH Cable

Model : GJYFXCH

Fiber Count : 1 to 12 Fiber

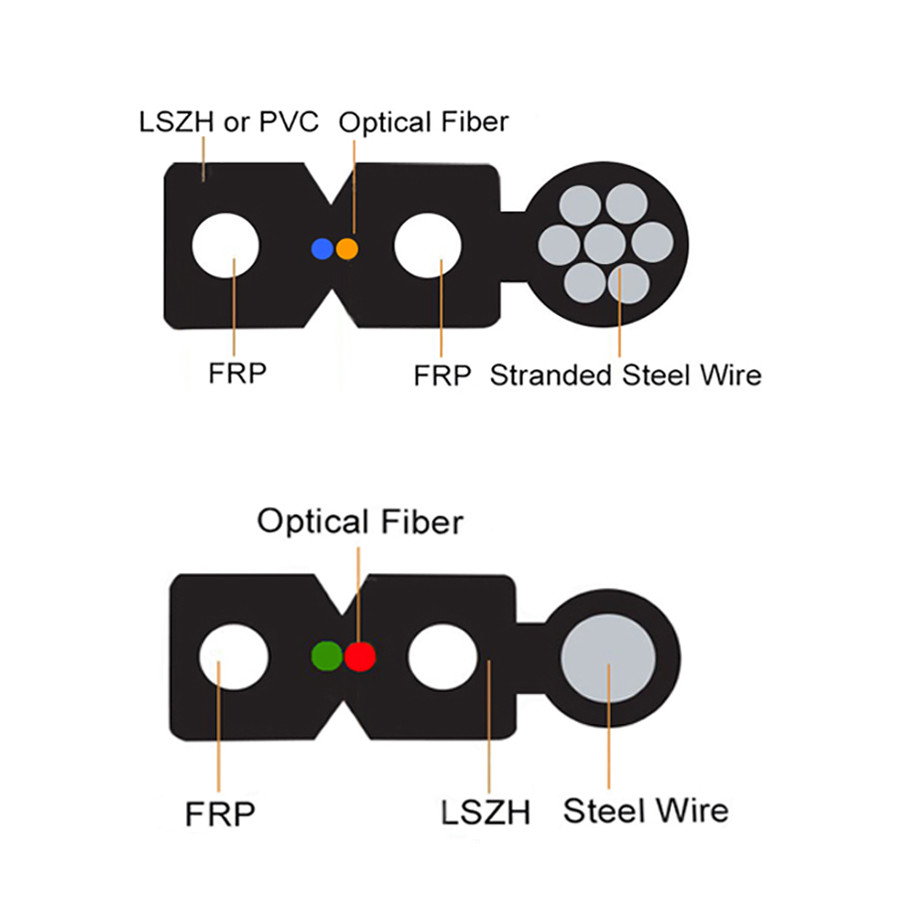

Structure : FO, 2 FRP, 1.0mm steel wire，LSZH JACKET

Diameter : 5.0MM *2.0MM

Fiber type : G.652D/G.657A1/G.657A2

Jacket : LSZH

Strength member : Two parallel FRP/KFRP wire

Supporting Wire : 1.0 mm steel wire

Contact Now

Aerial Self - Support FTTH Drop Cable 1 - 12 Core Fiber Optic Cable SM Drop Wire

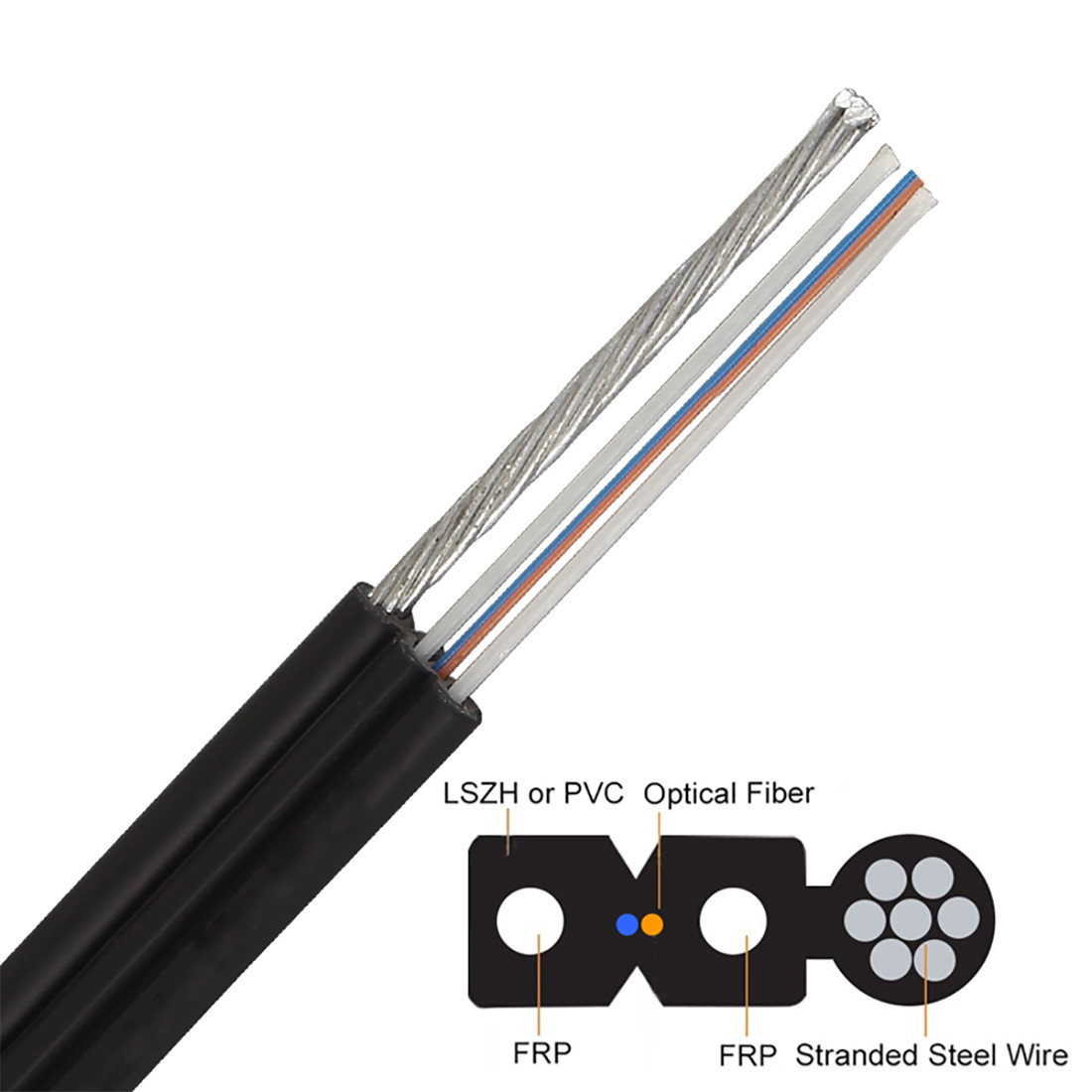

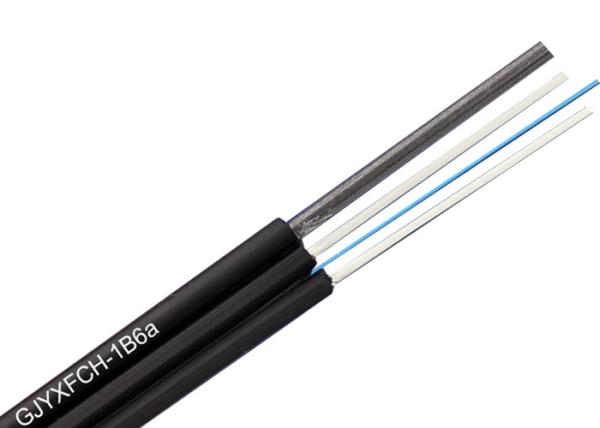

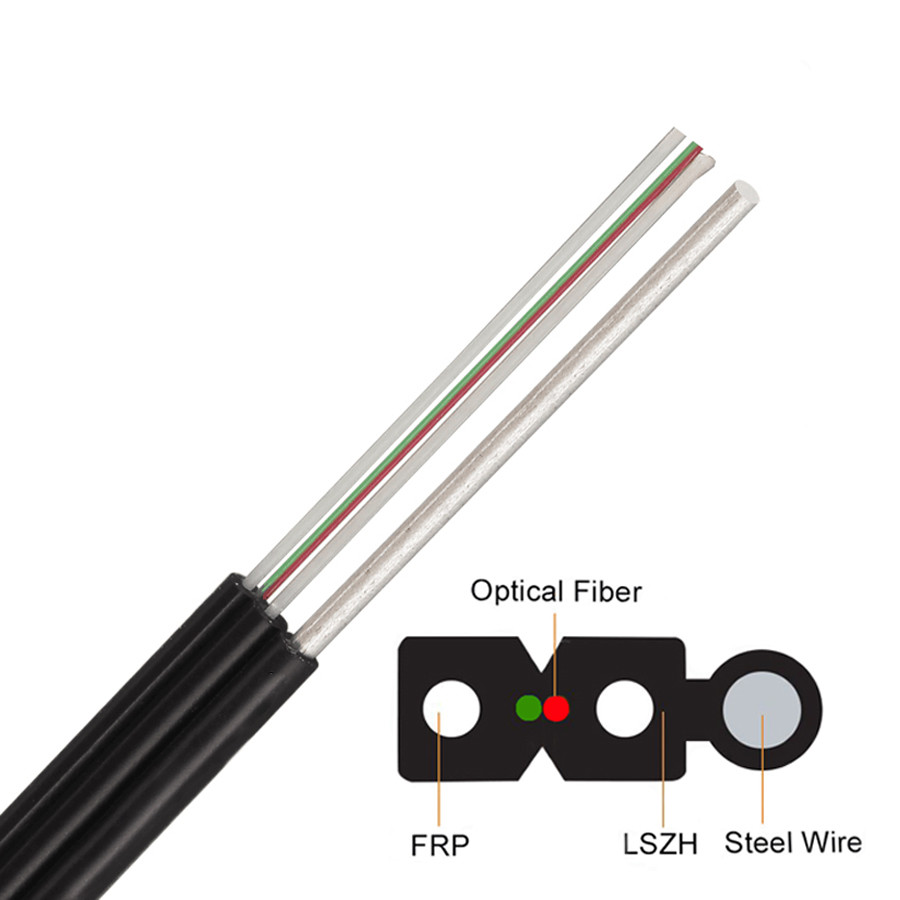

Optic fiber drop cable GJYFXCH, with two parallel FRP and 1.0mm self-supporting wire it used as an Aerail self-supporting wire.

FTTH fiber optic drop cable is suitable for Fiber to the Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP, Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.

Feature:

1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification

Application:
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring

Fiber Count	1F	2F	4F / 6F	8F / 12F
Self -Supporting Strength Member	Solid Steel Wire/Stranded Steel Wire
	1.0mm			1.2mm
Strength Member	FRP / KFRP
	0.45-0.5mm	0.45-0.5mm	0.45-0.5mm	0.45-0.5mm
Cable Diameter (mm)	(2.0±0.1)×(5.0±0.1)			(2.8±0.1)×(6.3±0.1)
Cable Weight (KG/KM)	18.5/20	19/20.5	20/21.5	34/34.5
Tensile Strength Short / Long Term (N)	200/100 for Steel wire strengh member 80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm)	1000/500
Operating Temperature Range (℃)	-40~ +70℃

GJYFXCH 1-12 Cores FTTH Drop Fiber Optic Cable
